Description

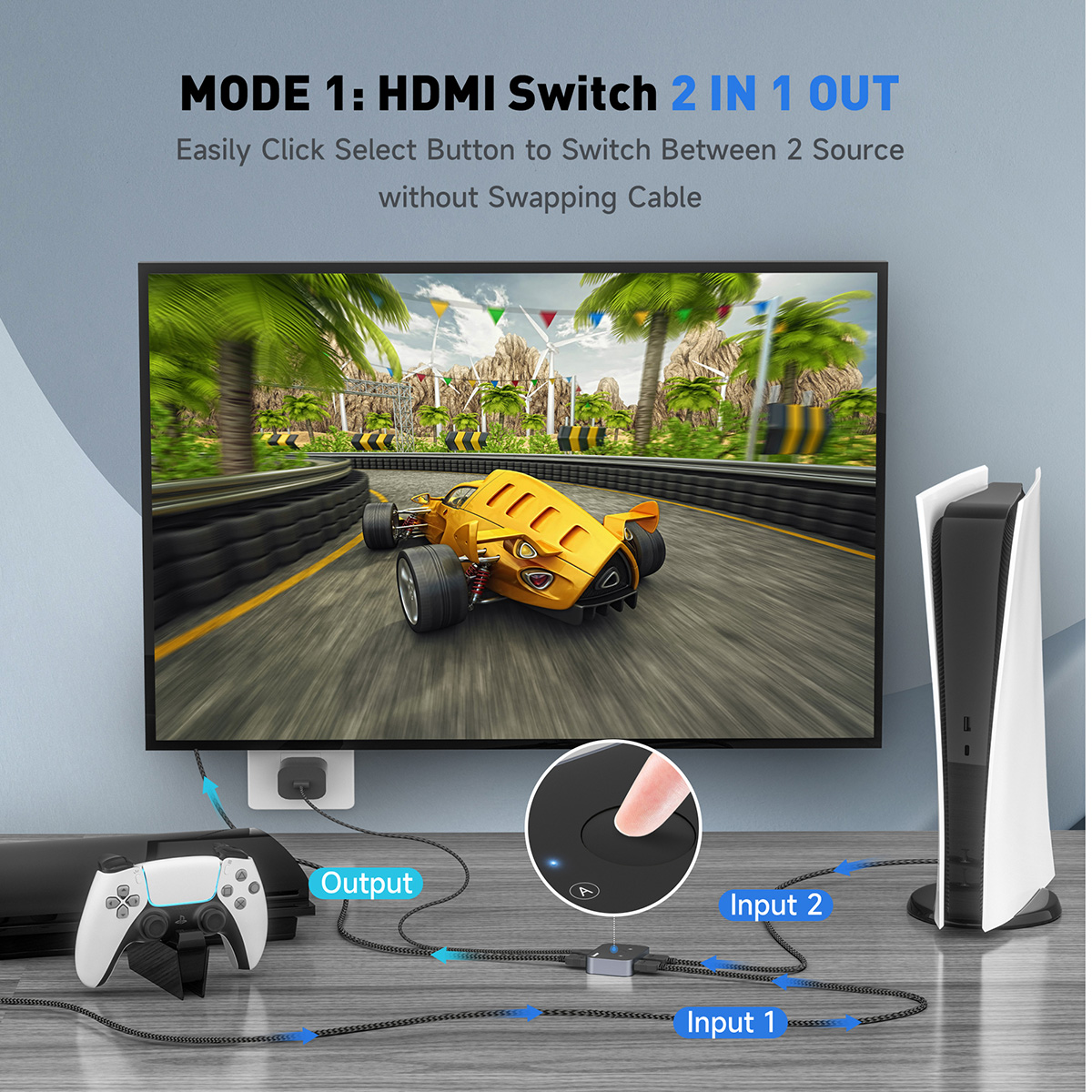

In Switch mode (works as HDMI Switch), offers 2 HDMI inputs to connect with 1 HDMI display, you can switch between them to avoid the damage of the HDMI display caused by plugging and unplugging the HDMI cable.
1. Connect the signal hosts(for example: PC, PS4) to the 2 HDMI input ports (HDMI cables are not included).
2. Connect the hdmi switch to a display (TV or Monitor), please remember to set the signal source to HDMI.
3. Press the select button to select the signal host manually.

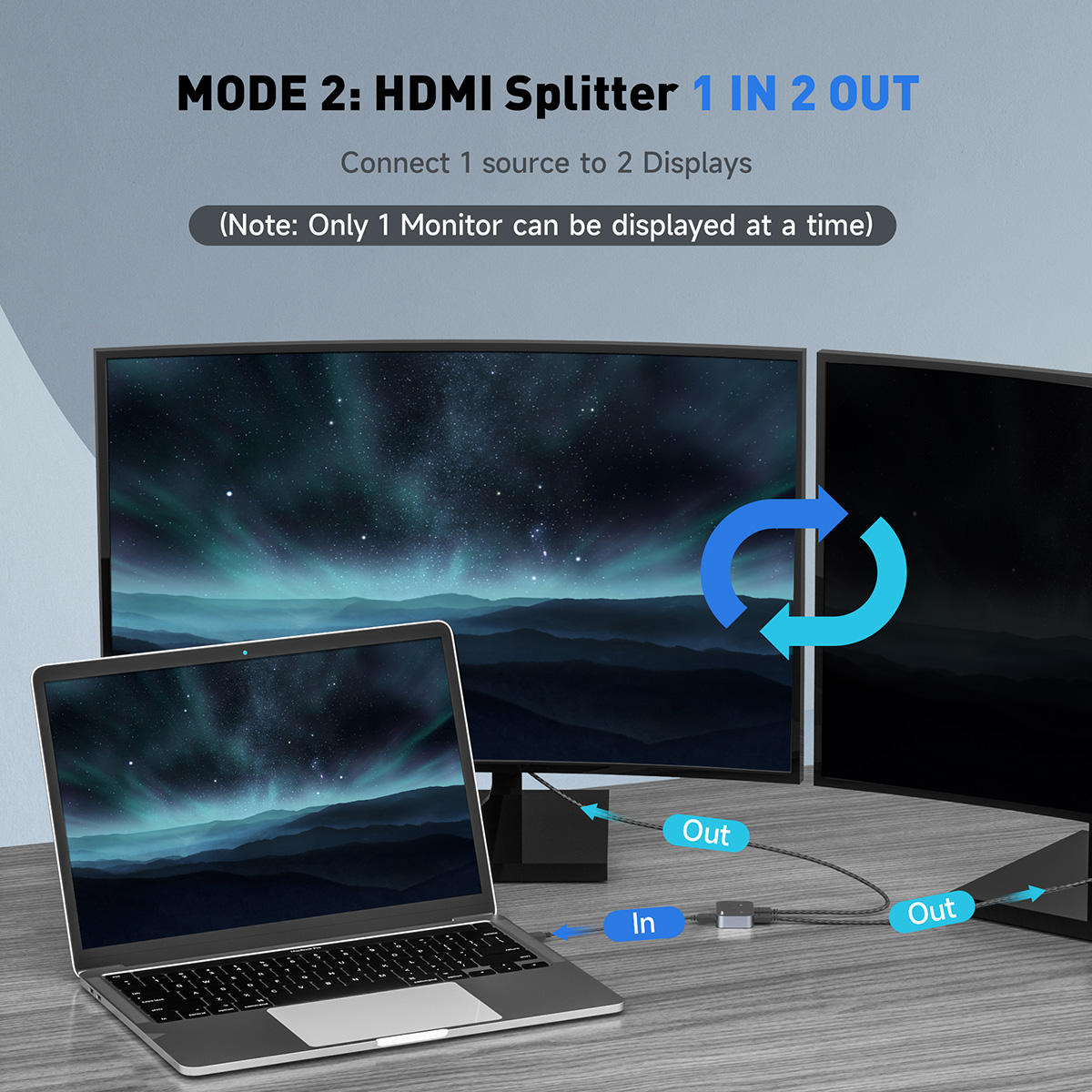

In Splitter mode (works as HDMI Splitter), offers 1 HDMI device with 2 external HDMI displays. (only 1 display can be displayed at a time).
1. Connect the signal hosts(for example: TV Box or Stick) to the 1 HDMI input ports (HDMI cables are not included).
2. Connect the hdmi switch to the displays (TV & Monitor), please remember to set the signal source to HDMI.
3. Press the select button to select the signal host manually.

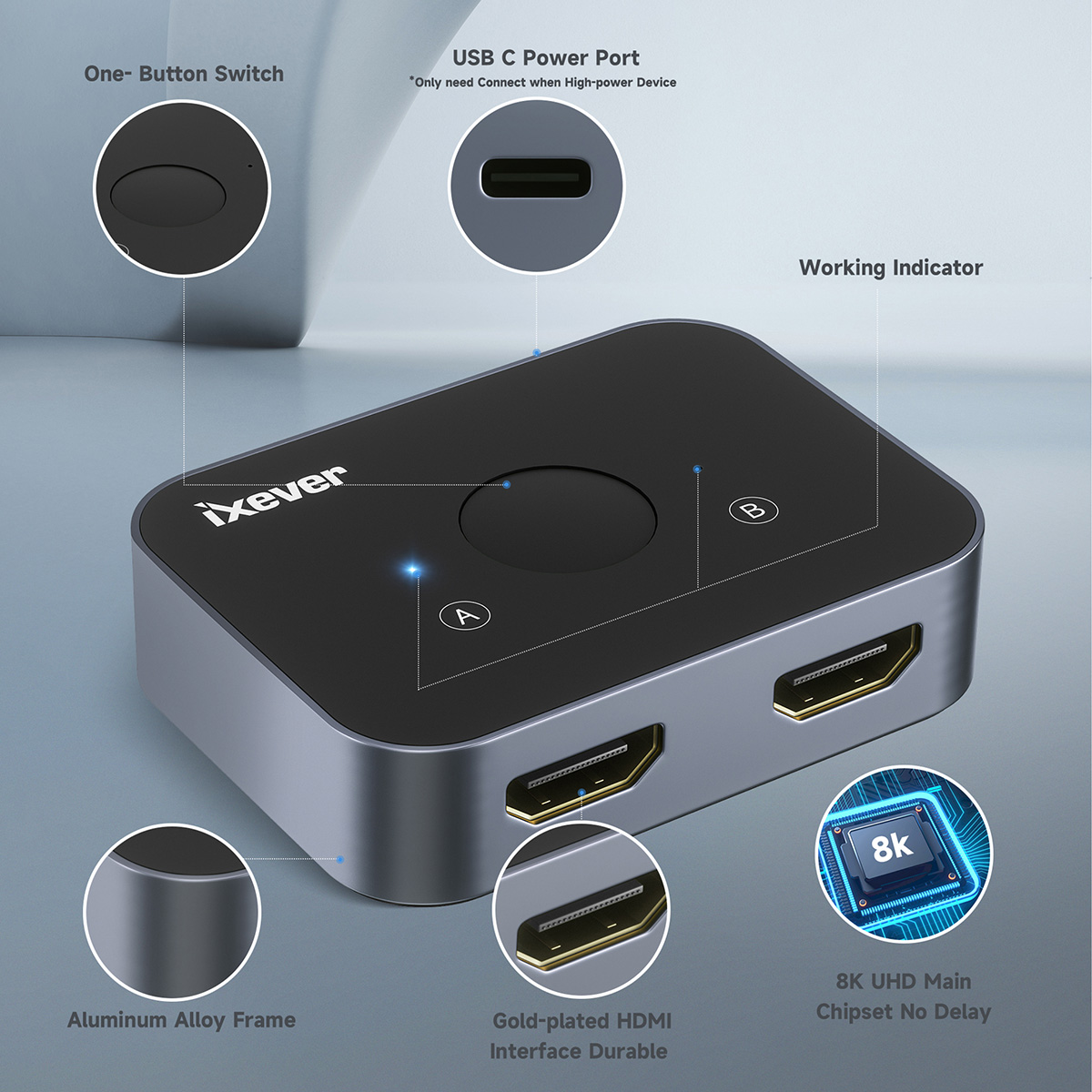

Specifications:
3 HDMI ports.
1 USB-C port (Power Supply Port, to ensure some old monitor to work stable. For most device, it can work WITHOUT power supply).
High-quality aluminum alloy case.

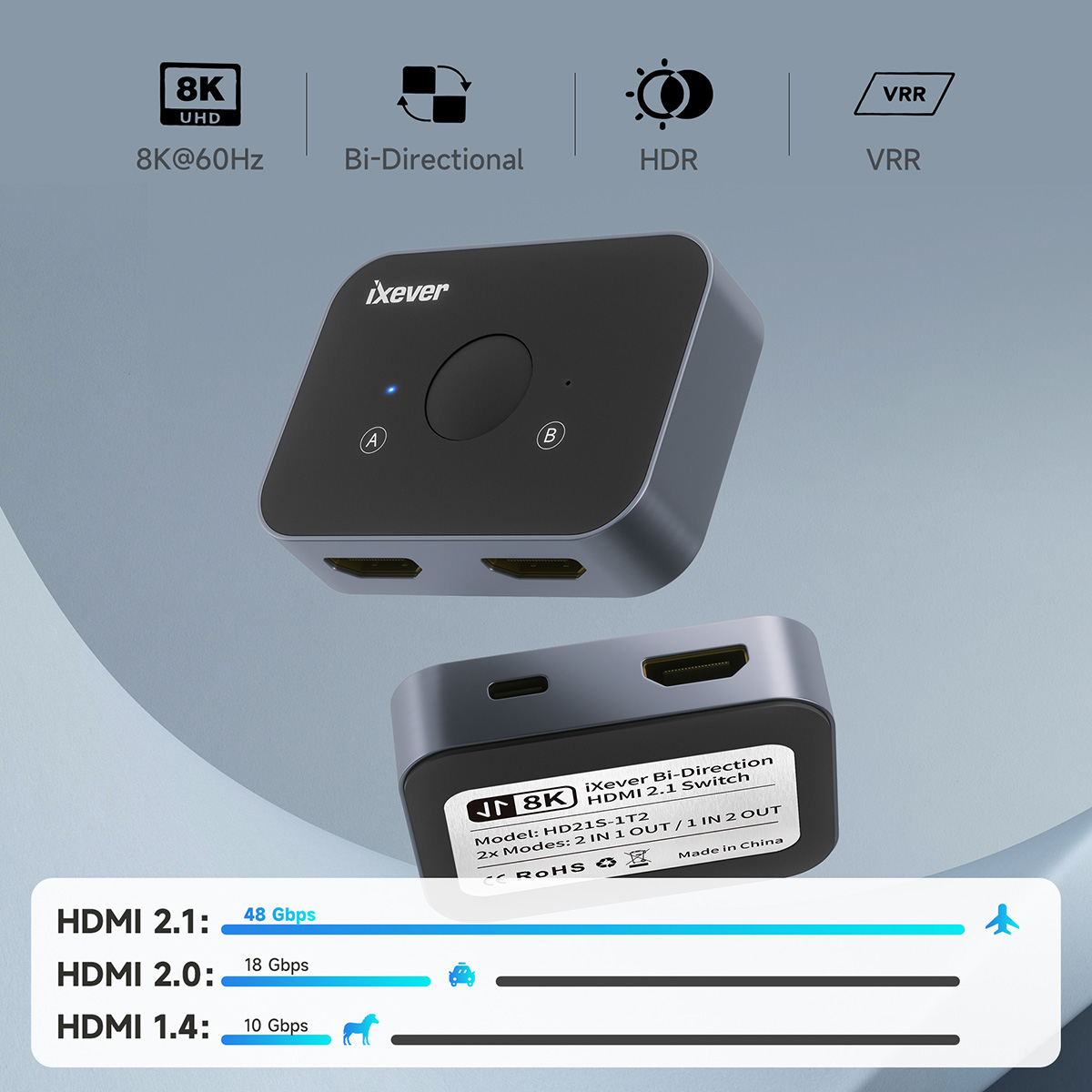

Supports up to 8K@120HZ resolution with backward compatible with lower resolution: 4K/2K/1080p.
Support 12-bit Deep color per channel.
Support 3D devices.
Supports compressed audio such as DTS Digital, Dolby Digital.
Plug and Play, No External Power Needed (the USB-C power port is to ensure some old monitor to work stable. For most device, it can work WITHOUT power supply).

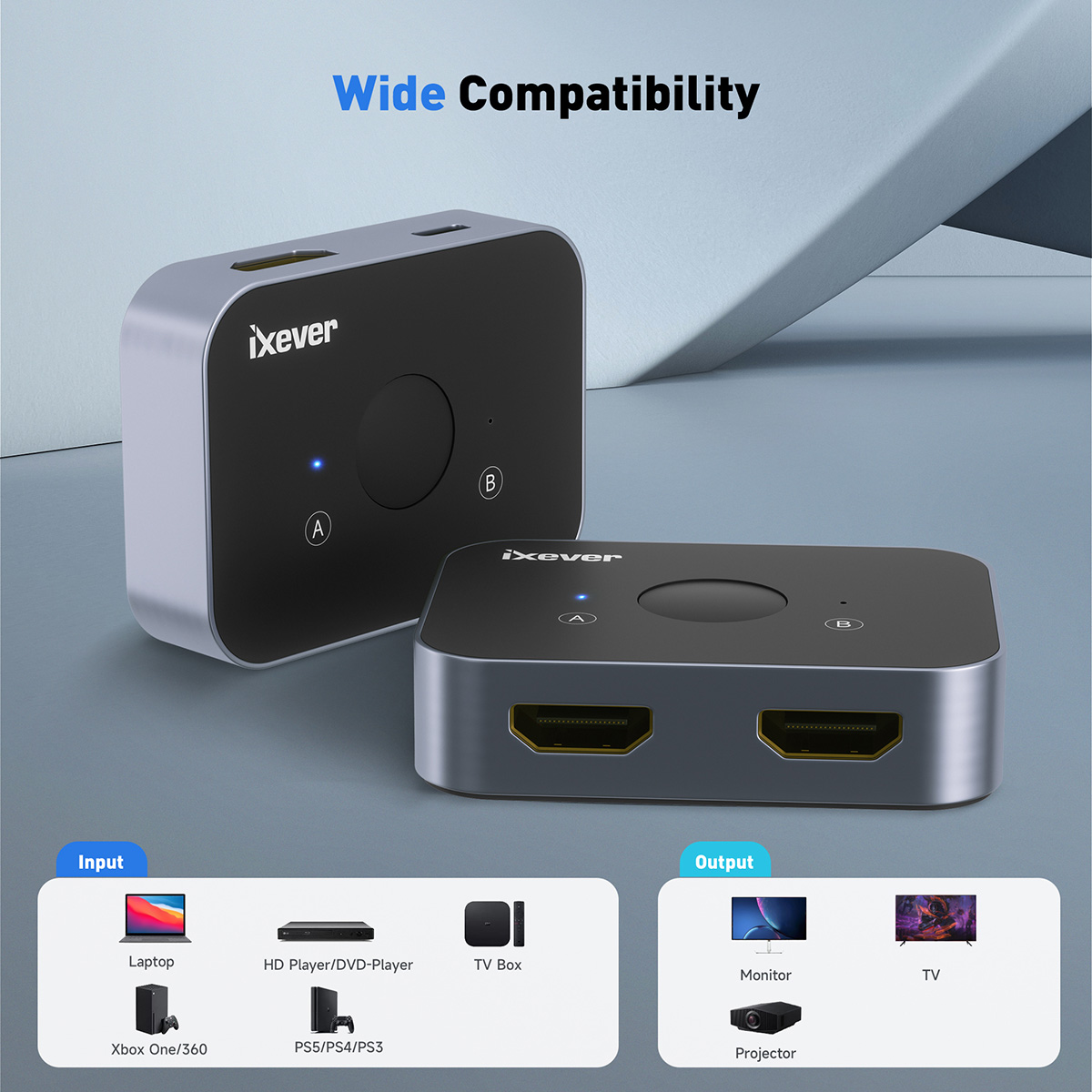

Broad Compatibility:
Supports compatible with PC, Laptop, Xbox 360, Xbox One, PS3 / PS4 / PS5, Blu-Ray DVD player, Satellite receivers, Roku, Fire Stick, and a lot more.
Package Contains:
1x HDMI Switcher(2in1out).
1x USB Type A to C Power Cable(1M/3.3Ft).
Use Tips:
1. In splitter mode, only 1 of the 2 displays works at a time.
2. This HDMI2.1 Switch 8K can’t switch automatically, ONLY by MANUALLY pressing the SELECT button.
3. If your PS4 Pro run 4K/60Hz, please LOWER the resolution from 2160P-RGB to 2160P-YUV420, or to1080P. For xbox one x series, please lower to 3840×2160@25hz.

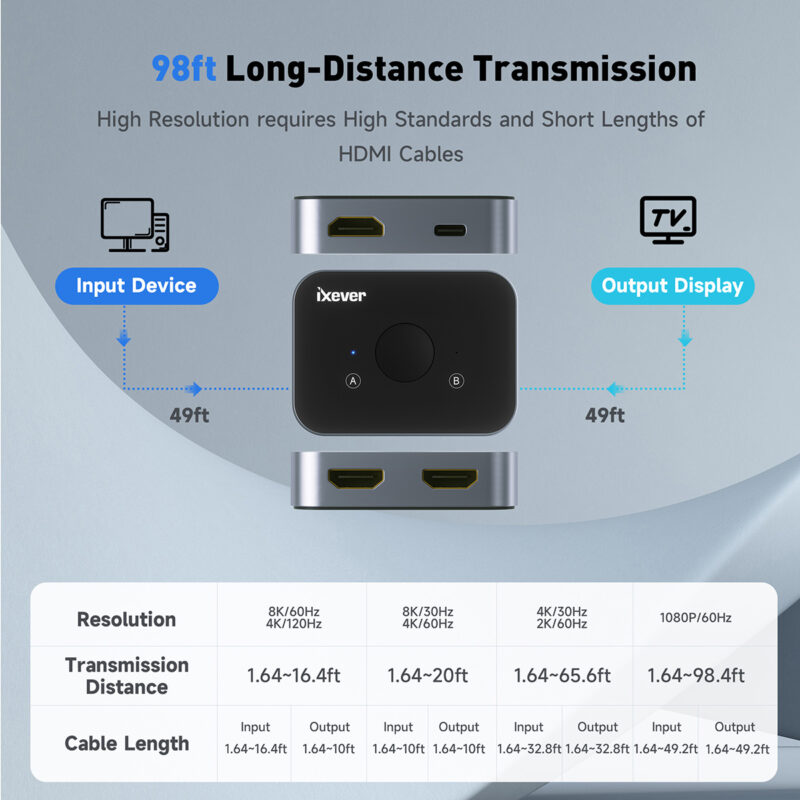

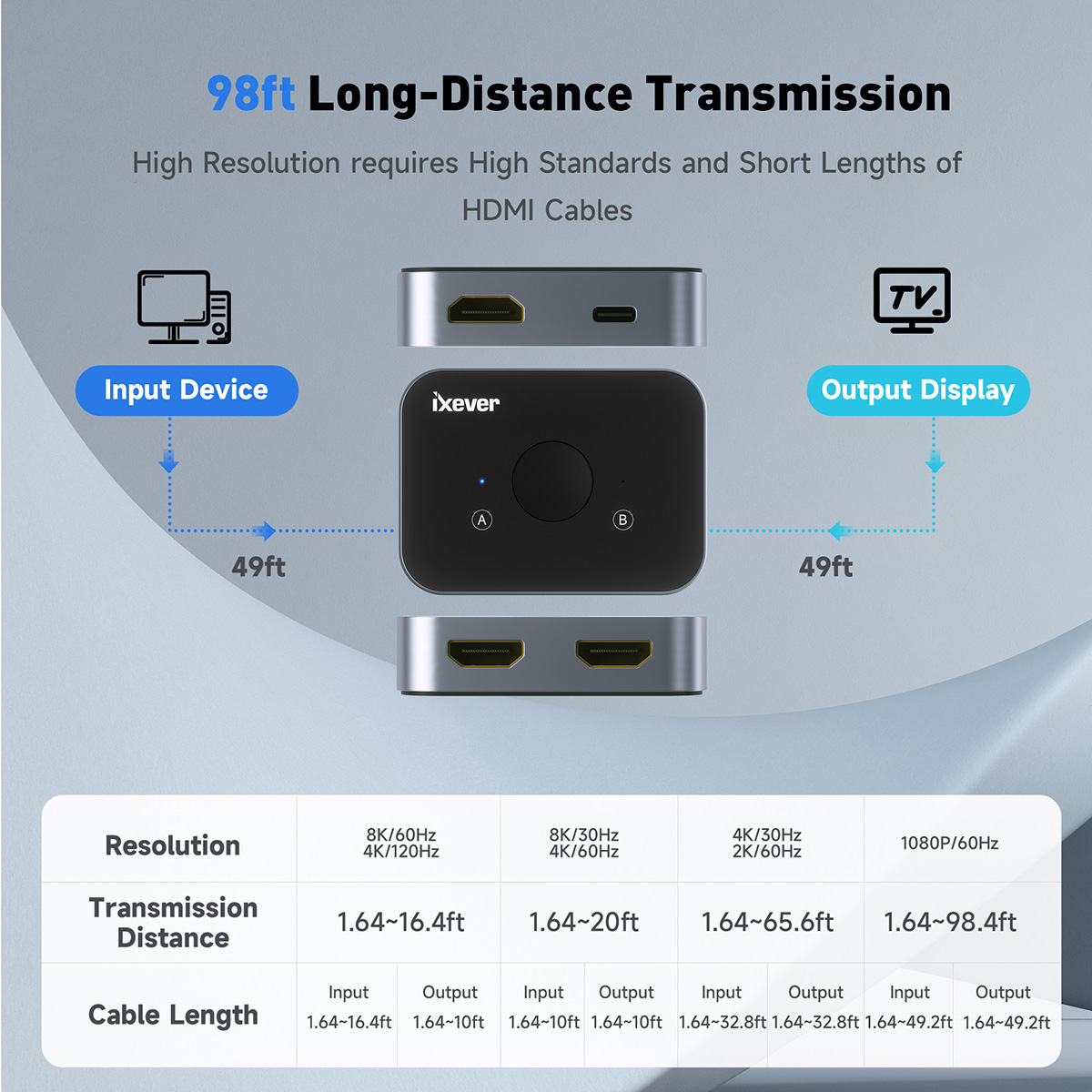

5. It is recommended that the total length of HDMI 2.1 cable is 3M if you need to get 8K@120hz video connections.
